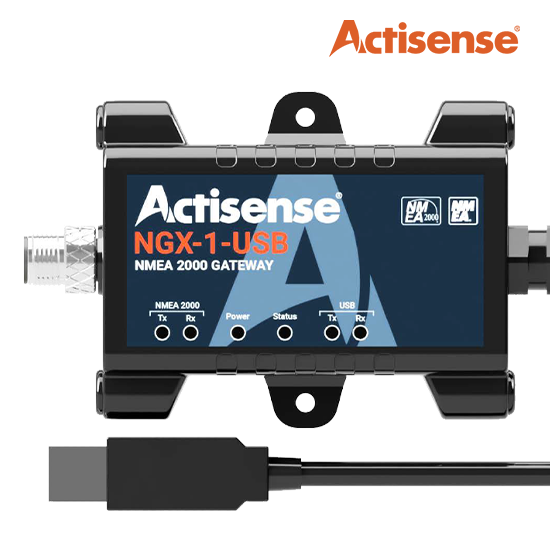

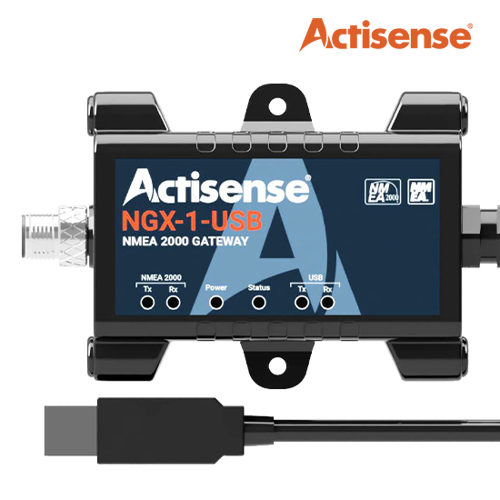

Full control and visibility of your vessel data using the NGX-1-USB
- View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
- Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
- Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
- Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
FEATURES
- Vital NMEA 2000 diagnostic tool
- USB version is fully isolated to prevent dangerous ground loops
- Up to 230,400 baud data transfer rate
- Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
- Supports Fast Heading at 10Hz
- Multiple diagnostic LEDs
BENEFITS
- Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
- Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
- Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
- Configure and flash-update Actisense products on the bus
- Reliable, renowned bi-directional conversion engine
- Supports a wide range of conversions including AIS
- Easily configurable using Actisense Toolkit
For more details visit Actisense at:
https://actisense.com/products/nmea-2000-gateway-ngx-1/
