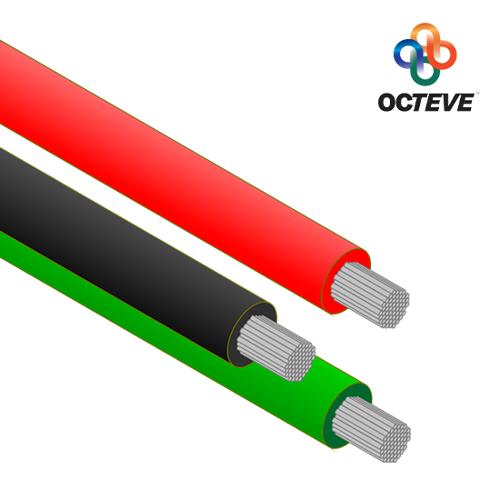

EA Single Core cable - 35.0 sqmm

Flexible Tinned Coper 35sqmm Single Insulated Power Cables suitable for Shipboard and Marine applications.
Manufacturer: Octeve

UX Marine & Offshore Switchboard/Panel wire

0.6/1kV 110°C LSHF Flame Retardant
ROHS III & REACH compliant

Applications

Flexible Single Insulated Power cables suitable for marine and offshore applications.

Design Construction

  • Conductors
    Flexible stranded plain or tinned annealed copper
    to IEC 60228 and AS/NZS 1125.
  • Insulation
    HFFLEX HF-90 Halogen Free Crosslinked
    Polyolefin (XLPO), Flame Retardant, Sunlight &
    Ozone resistant. Excellent resistance to abrasion.

Standards

IEC 60228, IEC 60502-1, IEC 60992-353, IEC 60332-1, IEC 60332-3-22 CAT A, IEC 60754-1&2, IEC 61034-1&2, AS/NZS 1125, AS/NZS 5000.1, IEEE 45, IEEE 1580, IEEE 1202

Specifications

  • Operating Temp: -40ºC to +110ºC
  • Voltage Rating: 600/1000 V / 900/1500V DC
  • Minimum Bending Radius: 23mm
  • Nominal Conductor Diameter: 7.4mm
  • Nominal Overall Diameter: 9.4mm
  • Current Rating: 157A
    to IEC 60092-352:2005 Table B.4 - Current carrying capacaties in continuous service, 90ºC opperating temperature, 45ºC ambient temperature.
  • Approx Weight: 314kg/km

Discount options available for Roll Quantities, Contact us for special orders

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

UX Marine & Offshore Switchboard/Panel wire

0.6/1kV 110°C LSHF Flame Retardant
ROHS III & REACH compliant

Applications

Flexible Single Insulated Power cables suitable for marine and offshore applications.

Design Construction

  • Conductors
    Flexible stranded plain or tinned annealed copper
    to IEC 60228 and AS/NZS 1125.
  • Insulation
    HFFLEX HF-90 Halogen Free Crosslinked
    Polyolefin (XLPO), Flame Retardant, Sunlight &
    Ozone resistant. Excellent resistance to abrasion.

Standards

IEC 60228, IEC 60502-1, IEC 60992-353, IEC 60332-1, IEC 60332-3-22 CAT A, IEC 60754-1&2, IEC 61034-1&2, AS/NZS 1125, AS/NZS 5000.1, IEEE 45, IEEE 1580, IEEE 1202

Specifications

  • Operating Temp: -40ºC to +110ºC
  • Voltage Rating: 600/1000 V / 900/1500V DC
  • Minimum Bending Radius: 23mm
  • Nominal Conductor Diameter: 7.4mm
  • Nominal Overall Diameter: 9.4mm
  • Current Rating: 157A
    to IEC 60092-352:2005 Table B.4 - Current carrying capacaties in continuous service, 90ºC opperating temperature, 45ºC ambient temperature.
  • Approx Weight: 314kg/km

Discount options available for Roll Quantities, Contact us for special orders

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

Picture of 35mm2, 1-Core, Black, Tinned Marine Wire /m
35mm2, 1-Core, Black, Tinned Marine Wire /m
SKU: ITA021593
Manufacturer part number: UP-XXXD/1C35BK
Call for pricing
Picture of 35mm2, 1-Core, Green, Tinned Marine Wire /m
35mm2, 1-Core, Green, Tinned Marine Wire /m
SKU: ITA021595
Manufacturer part number: UP-XXXD/1C35GN
Call for pricing
Picture of 35mm2, 1-Core, Red, Tinned Marine Wire /m
35mm2, 1-Core, Red, Tinned Marine Wire /m
SKU: ITA021594
Manufacturer part number: UP-XXXD/1C35RE
Call for pricing
