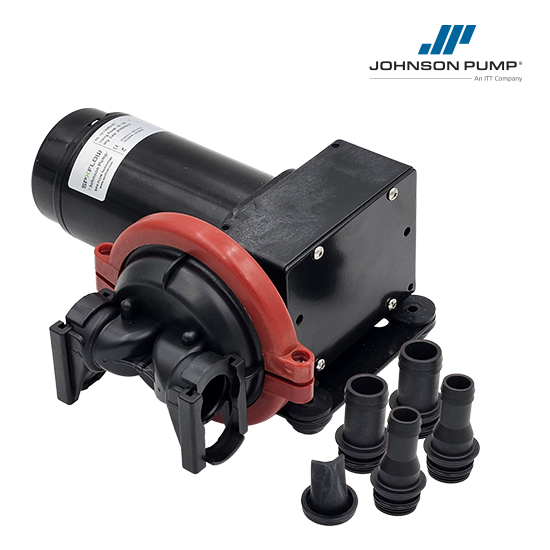

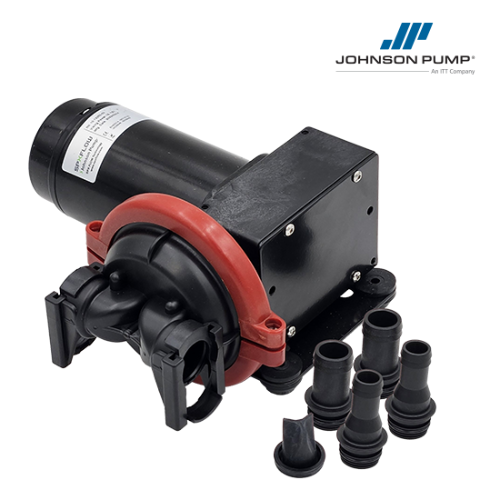

SPX Viking Power 16 Grey Waste Pump
A modern, single-chamber, self-priming diaphragm pump that can be set up in several different pump/motor configurations. It is easy to install anywhere after the drain outlet in the wastewater system or as a bilge pump in any leisure craft – new or used.
The Viking Power 16 is self-priming up to a height of three meters. With its low pulse and muffled rubber bracket, this pump offers quiet operation. Specifically designed to pump waste water, with double check valves for improved pumping action, the Viking Power 16 has been built to last, and engineered for easy maintenance. When it comes time to replace the premium grade reinforced nitrile rubber diaphragm, you can put in a spare without even removing the pump from the system.
Its non-choke valves mean that no in-line filters are necessary. The pump can be run dry, and it can also handle a mixture of air and water without difficulty. Delivered with 1" and 3/4" KlickTite XL connectors. 90° KlickTite XL connectors available as extra accessory.
Motor: 2.3 amp (12V), 1.2 amp (24V) at 0.1 bar
Power: 12/24V DC (with built-in thermal protection)
Body: Nylon, glass-fiber reinforced
Valves: Nitrile rubber
Diaphragm: Reinforced nitrile rubber
Length: 186 mm – 7.3"
Width: 227/181 mm – 8.9"/7.1"
Height: 117/204 mm – 4.6/8"
Weight: 2.6 kg – 5.7 lbs
Specifications:
| Part No. |
Description |
Capacity, open flow |
Capacity at
0.1 bar |
Max lift |
Max head |
Connection |
| 10-13350-03 |
Viking Power 16 12V |
16 l/min – 4.2 GPM |
15 l/min – 4.0 GPM |
3 m – 9.8 ft |
3 m – 9.8 ft |
1" and ¾" KlickTite XL connectors, 90° (Optional) |
| 10-13350-04 |
Viking Power 16 24V |
16 l/min – 4.2 GPM |
15 l/min – 4.0 GPM |
3 m – 9.8 ft |
3 m – 9.8 ft |
