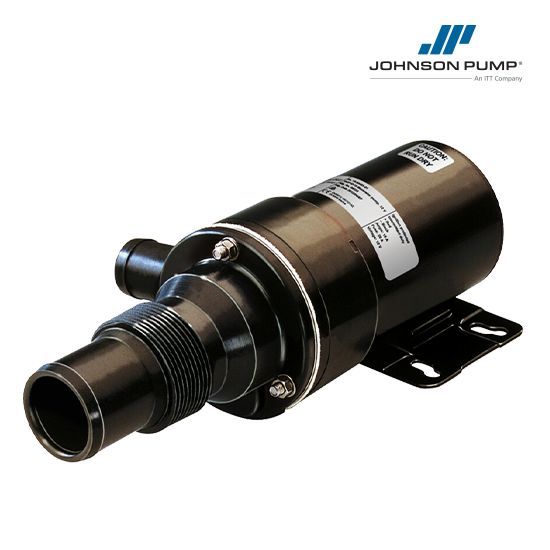

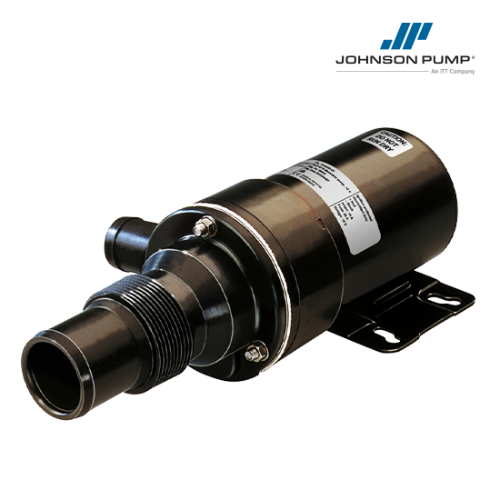

A rotary cutter shreds waste before it is pumped into or out from the holding tank. The pump should be connected as close as possible to the holding tank discharge outlet. Note! Use unbleached lavatory paper only.
Motor: 12/24V DC (with built-in thermal protection)
Body: Phenol Plastic (PF)
Impeller: Nitrile 09-1052S-9
Housing: Thermoplastic Polyester (PET)
Shaft: Stainless Steel
Seal: Lip Seal
Specifications:
| Part No. |
Description |
Capacity at
0.2 bar (6.7 ft) |
Inlet Connection |
Amp |
Fuse size |
Outlet Connection |
| 10-24453-04 |
TA3P10-19 12V Macerator |
37 l/min – 10 GPM |
1½" (Ø38 mm) hose or 1½" BSP |
15 A |
20 A |
1" (25.4 mm) hose |
| 10-24453-05 |
TA3P10-19 24V Macerator |
37 l/min – 10 GPM |
1½" (Ø38 mm) hose or 1½" BSP |
7 A |
12 A |
1" (25.4 mm) hose |
