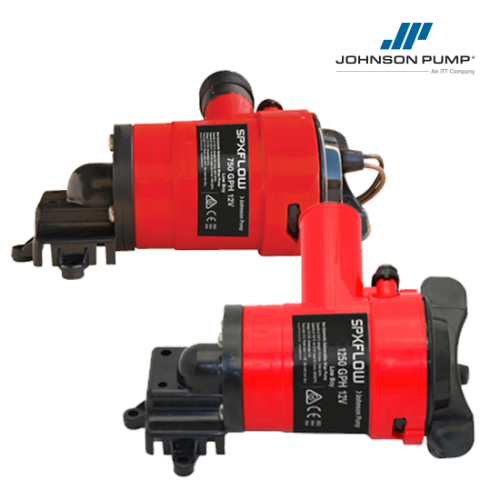

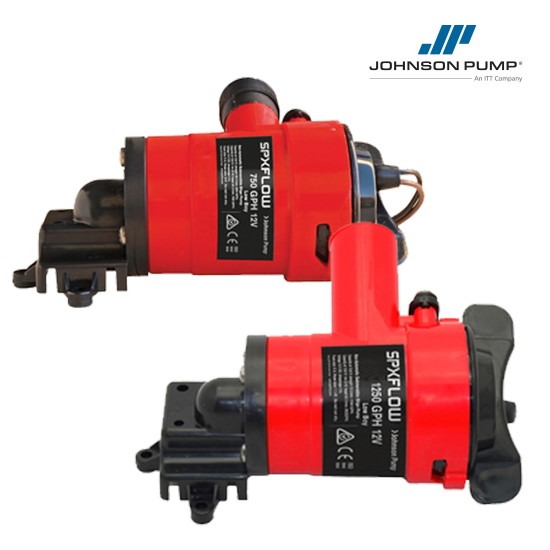

SPX Low Boy Submersible Bilge Pumps

Low Profile pump design for ease of mounting and removal in tight bilge areas. Perfect for vessels with bilge pumps mounted beneath inboard or I/O engines. Features our removable cartridge style.
Manufacturer: SPX Johnson

The 750 GPH Low Boy Bilge pumps have easy-to-install Dura-Port discharge ports to eliminate stress
cracking caused by over-tightened hose clamps. The pumps include both a straight and a 90° smooth elbow.
Use Electro-Magnetic Float Switch (Part No. 34-1900B-12V) only.

Specifications:

Part No. Description Capacity 3 ft (0.9m) head Capacity straight Amp Fuse Size Connection
32-33703LB-01 Low Boy Bilge Pump 750 GPH 12V 44 l/min - 700 GPH 50 l/min - 800 GPH 3 A 5 A ¾" (19mm)
32-33103LB-01 Low Boy Bilge Pump 1250 GPH 12V* 60 l/min - 952 GPH 73 l/min - 1150 GPH 3 A 5 A 1⅛" (28mm)

The 750 GPH Low Boy Bilge pumps have easy-to-install Dura-Port discharge ports to eliminate stress
cracking caused by over-tightened hose clamps. The pumps include both a straight and a 90° smooth elbow.
Use Electro-Magnetic Float Switch (Part No. 34-1900B-12V) only.

Specifications:

Part No. Description Capacity 3 ft (0.9m) head Capacity straight Amp Fuse Size Connection
32-33703LB-01 Low Boy Bilge Pump 750 GPH 12V 44 l/min - 700 GPH 50 l/min - 800 GPH 3 A 5 A ¾" (19mm)
32-33103LB-01 Low Boy Bilge Pump 1250 GPH 12V* 60 l/min - 952 GPH 73 l/min - 1150 GPH 3 A 5 A 1⅛" (28mm)
Picture of Low Boy Bilge Pump 750 GPH 12V
Low Boy Bilge Pump 750 GPH 12V
SKU: ITA016152
Manufacturer part number: 32-33703LB-01
฿2,091.00 incl VAT
Picture of Low Boy Bilge Pump 1250 GPH 12V
Low Boy Bilge Pump 1250 GPH 12V
SKU: ITA016146
Manufacturer part number: 32-33103LB-01
฿2,620.00 incl VAT
