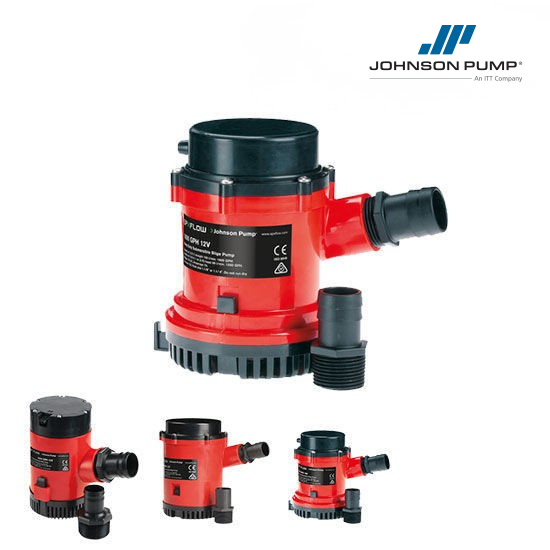

SPX Heavy Duty Submersible Bilge Pumps

Designed to meet and exceed the tough demands of commercial and recreational duty. These pumps have a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 1600 and 2200 GPH pumps are also available with a pre-wired Ultima Switch.
Manufacturer: SPX Johnson

The 2200 GPH motor is sealed off by a mechanical seal design, while the 1600 GPH model has a lipseal. The 4000 GPH features a robust motor design, mechanical shaft seal, high impact ABS plastic, generous wire length and unique threaded port design.

The impeller is carefully designed and tested to maximize head and flow. The universal base plate and a choice of two different ports sizes makes for a simple installation. Removable check valve included.

Specifications:

Part No. Description Capacity 3 ft (0.9m) head Capacity straight Amp Fuse Size Connection
32-1600-01 Heavy Duty Bilge Pump 1600 GPH 12V 98 l/min – 1550 GPH 100 l/min – 1600 GPH 7 A 10 A 1⅛" (28mm) and1¼" (32mm)
32-1600-02 Heavy Duty Bilge Pump 1600 GPH 24V 98 l/min – 1550 GPH 100 l/min – 1600 GPH 3.5 A 6 A 1⅛" (28mm) and 1¼" (32mm)
32-2200-01 Heavy Duty Bilge Pump 2200 GPH 12V 120 l/min – 1900 GPH 130 l/min – 2060 GPH 7.5 A 12 A 1⅛" (28mm) and 1¼" (32mm)
32-2200-02 Heavy Duty Bilge Pump 2200 GPH 24V 120 l/min – 1900 GPH 130 l/min – 2060 GPH 4.5 A 6 A 1⅛" (28mm) and 1¼" (32mm)
32-4000-01 Heavy Duty Bilge Pump 4000 GPH 12V 164 l/min – 2600 GPH 252 l/min – 4000 GPH 15 A 25 A 1½" (38mm) and 2" (50mm)
32-4000-02 Heavy Duty Bilge Pump 4000 GPH 24V 164 l/min – 2600 GPH 252 l/min – 4000 GPH 7.5 A 15 A 1½" (38mm) and 2" (50mm)

The 2200 GPH motor is sealed off by a mechanical seal design, while the 1600 GPH model has a lipseal. The 4000 GPH features a robust motor design, mechanical shaft seal, high impact ABS plastic, generous wire length and unique threaded port design.

The impeller is carefully designed and tested to maximize head and flow. The universal base plate and a choice of two different ports sizes makes for a simple installation. Removable check valve included.

Specifications:

Part No. Description Capacity 3 ft (0.9m) head Capacity straight Amp Fuse Size Connection
32-1600-01 Heavy Duty Bilge Pump 1600 GPH 12V 98 l/min – 1550 GPH 100 l/min – 1600 GPH 7 A 10 A 1⅛" (28mm) and1¼" (32mm)
32-1600-02 Heavy Duty Bilge Pump 1600 GPH 24V 98 l/min – 1550 GPH 100 l/min – 1600 GPH 3.5 A 6 A 1⅛" (28mm) and 1¼" (32mm)
32-2200-01 Heavy Duty Bilge Pump 2200 GPH 12V 120 l/min – 1900 GPH 130 l/min – 2060 GPH 7.5 A 12 A 1⅛" (28mm) and 1¼" (32mm)
32-2200-02 Heavy Duty Bilge Pump 2200 GPH 24V 120 l/min – 1900 GPH 130 l/min – 2060 GPH 4.5 A 6 A 1⅛" (28mm) and 1¼" (32mm)
32-4000-01 Heavy Duty Bilge Pump 4000 GPH 12V 164 l/min – 2600 GPH 252 l/min – 4000 GPH 15 A 25 A 1½" (38mm) and 2" (50mm)
32-4000-02 Heavy Duty Bilge Pump 4000 GPH 24V 164 l/min – 2600 GPH 252 l/min – 4000 GPH 7.5 A 15 A 1½" (38mm) and 2" (50mm)
Picture of Heavy Duty Bilge Pump 1600 GPH 12V
Heavy Duty Bilge Pump 1600 GPH 12V
SKU: ITA016135
Manufacturer part number: 32-1600-01
฿4,809.00 incl VAT
Picture of Heavy Duty Bilge Pump 1600 GPH 24V
Heavy Duty Bilge Pump 1600 GPH 24V
SKU: ITA016133
Manufacturer part number: 32-1600-02
฿4,960.00 incl VAT
Picture of Heavy Duty Bilge Pump 2200 GPH 12V
Heavy Duty Bilge Pump 2200 GPH 12V
SKU: ITA016123
Manufacturer part number: 32-2200-01
฿6,496.00 incl VAT
Picture of Heavy Duty Bilge Pump 2200 GPH 24V
Heavy Duty Bilge Pump 2200 GPH 24V
SKU: ITA016122
Manufacturer part number: 32-2200-02
฿6,696.00 incl VAT
Picture of Heavy Duty Bilge Pump 4000 GPH 12V
Heavy Duty Bilge Pump 4000 GPH 12V
SKU: ITA016118
Manufacturer part number: 32-4000-01
฿10,993.00 incl VAT
Picture of Heavy Duty Bilge Pump 4000 GPH 24V
Heavy Duty Bilge Pump 4000 GPH 24V
SKU: ITA016117
Manufacturer part number: 32-4000-02
฿11,194.00 incl VAT
