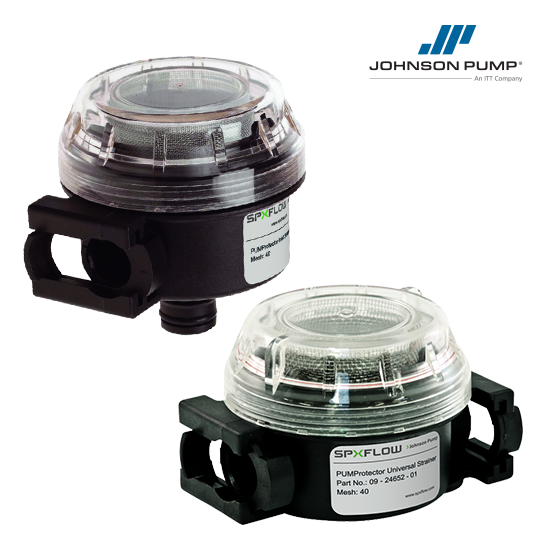

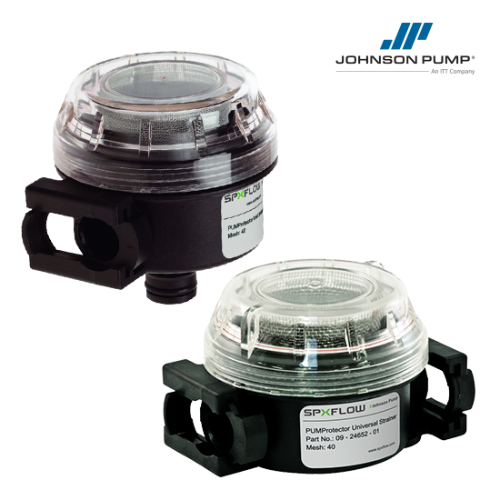

SPX PumpProtector Strainer
The PUMProtector™ Universal and Inlet strainers prevent debris and other particles from damaging the pump or passing through the system to the final outlet.
Both of these strainers feature transparent covers for simple inspection, a wide variety of KlickTite™ port connectors for simple installation and removal, and high quality materials for simple maintenance.
The design and connectors make it possible to remove the entire unit for thorough cleaning wherever it is most onvenient. We recommend 40 mesh for water pressure and wash down pumps and 20 mesh for general purpose pumps.
Specifications:
| Part No. | Description | Mesh | Max Liquid Temp. | Max Temp. for Drinking Water | KlickTite™ Connector |
| 09-24652-02 | Universal Strainer | 40 | +50°C – +120°F | +30°C – +85°F | 2 x ½" hose / ⅜" NPT
2 x ¾" hose / ½" NPT |
| 09-24652-04 | Universal Strainer | 20 |
| 09-24653-02 | Inlet Strainer | 40 | Built-in KlickTiteTM
1 x ½" hose / ⅜" NPT
1 x ¾" hose / ½" NPT |
