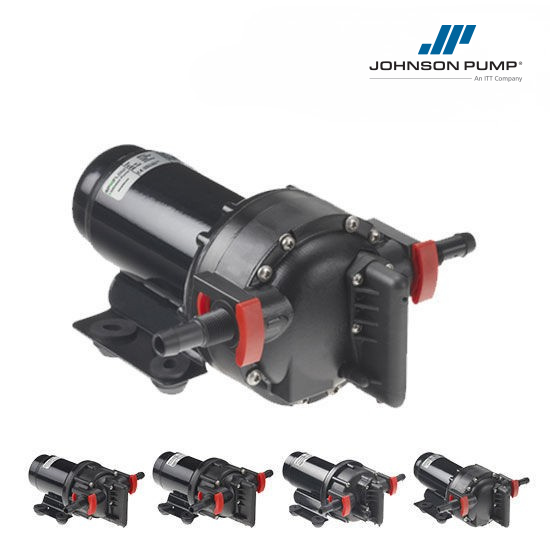

SPX Aqua Jet Water Pressure Pumps
The Aqua Jet five-chamber diaphragm pump provides excellent water pressure onboard. This versatile pump also serves for deck wash solutions on both small and medium sized leisure and commercial boats, as well as for mobile homes, campers and summer cottages.
Quiet and pulsation-free even at low speeds. Efficient and compact, Aqua Jet pumps are particularly suitable where low amperage and sound levels in relation to water flow are placed at a premium - such as in shower and galley applications. Integrated pressure switch turns pump on and off automatically when tap is opened and closed.
Operates in fresh or sea water. Self-priming. It is recommended to install the WPS-pumps with an accumulator tank. Always use a PUMProtector inlet strainer before the pump intake.
Specifications:
| Part No. |
Description |
Capacity |
Pressure Cut Off* |
Fuse Size |
Connection** |
| 10-24604-03 |
Aqua Jet WPS 2.4 12V |
9 l/min – 2.4 GPM |
2.8 bar – 41 psi |
10 A |
⅜" BSP / hose ½", ½" BSP ¾" hose |
| 10-24604-04 |
Aqua Jet WPS 2.4 24V |
5 A |
| 10-13405-03 |
Aqua Jet WPS 2.9 12V |
11 l/min – 2.9 GPM |
10 A |
| 10-13405-04 |
Aqua Jet WPS 2.9 24V |
5 A |
| 10-13395-03 |
Aqua Jet WPS 3.5 12V |
13 l/min / 3.5 GPM |
10 A |
| 10-13395-04 |
Aqua Jet WPS 3.5 24V |
5 A |
| 10-13406-07 |
Aqua Jet WPS 5.2 12V |
20 l/min/ 5.2 GPM |
15 A |
| 10-13406-08 |
Aqua Jet WPS 5.2 24V |
8 A |
