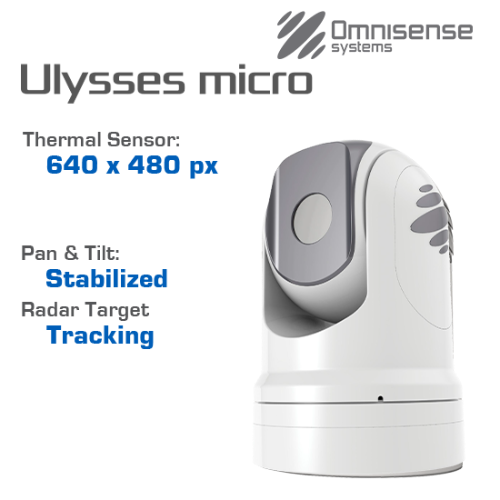

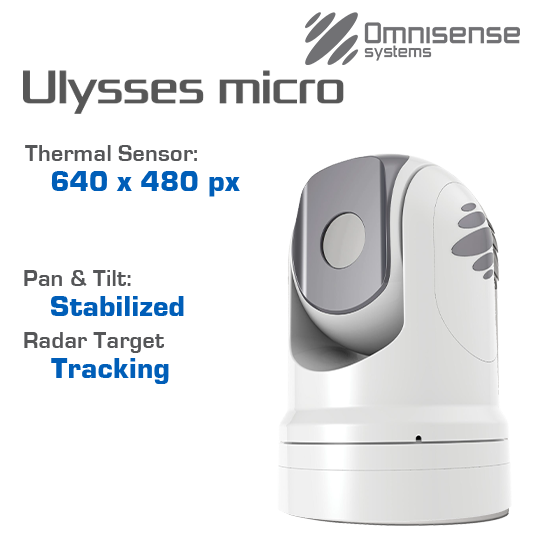

Omnisense Ulysses Micro S+, T (640x480px), Pan/Tilt, Stabilized, White Camera
Similar to FLIR M364
SKU:
ITA001191
Manufacturer part number:
ULS-M640S
Omnisense (by Infravision)Ulysses Micro S+
High performance compact thermal camera
The Ulysses micro is a series of compact and highly affordable marine night vision systems designed for small, fast boat installation. As with the larger Ulysses, the micro-series cameras feature a high-performance long-wave infrared sensor that streams thermal imaging videos to your favorite multi-function displays with superior clarity and sharpness, unseen in competing products of its class.
Key Features
Has around-the-clock imaging capability to enhance operational safety and situational awareness.
- Wide display interfacing options
- Advanced MFD/mobile app touch-screen control
- Radar Slave and other advanced network functions
- Low power consumption
- Rugged/weatherproof construction
- Easy installation
Easy Integration
The Ulysses micro-series cameras are designed to integrate seamlessly into most popular MFDs. A single cable installation greatly simplifies wire routing from camera to displays. A supplied junction box provides neat cable management, power distribution, and network connectivity to your boat systems.
Designed for:
FURUNO, GARMIN, B&G, SIMRAD, LOWRANCE
Specifications
| General | Micro S+ |
| Sensor Type | 17um Uncooled Microbolometer LWIR FPGA |
| Thermal Resolution | 384 X 288 |
| Field of View | 24° (H) X 18° (V) |
| Focal Length | 25mm |
| Zoom | Continuous E-Zoom 1.0X - 4.0X |
| System Specifications |
|
| Pan / Tilt Coverage | Pan: Continuous 360° Tilt: -90° to +100° |
| Stabilisation | No |
Video Output
| IP Video (H264)
Analog for SIMRAD (NTSC or PAL), HDMI (Only when used with the Micro Junction Box) |
| Sensor Frame Rate | 9Hz / 30Hz |
| Power Consumption | 25W max |
| Power Requirements | POE |
| NMEA 0183 | Yes (Only when used with the Micro Junction Box) |
| Environmental |
|
| Operating Temperature Range | -25°C to +55°C (-13°F to 131°F) |
| Storage Temperature Range | -30°C to +70°C (-22°F to 158°F) |
| Encapsulation | IP66 |
| EMI / Salt Mist / Vibration | IEC 60945 |
| Wind | 115mph / 100kn |
| Range Performance |
|
| Detect Man | 0.41nm (759m)
|
| Detect a 30-foot Vessel | 3.77nm (6982m) |
| Dimensions |
|
| Size | 220mm X 140mm (8.7” X 5.5”) |
| Weight | ≤ 2.5kg (5.5lb) |
For More details, visit Infravision website here: INFRAVISION MICRO S+
