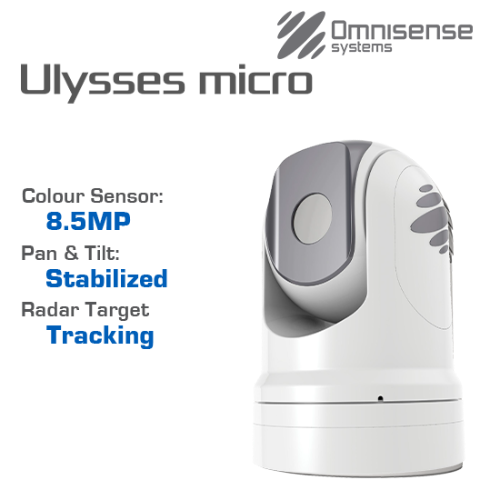

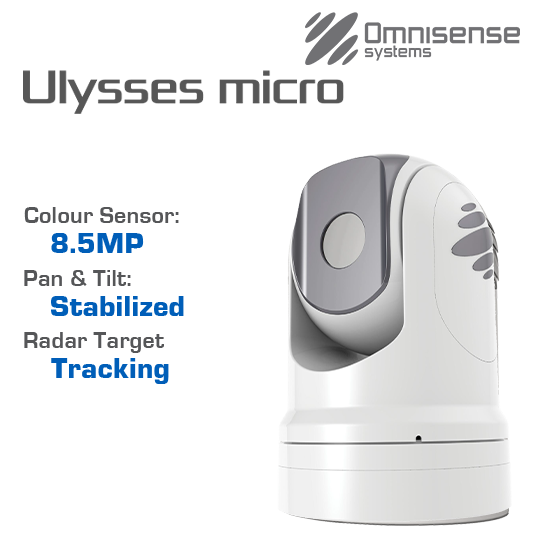

Omnisense Ulysses Micro C, C (720x1080px), Pan/Tilt, Stabilized, White Camera

Similar to FLIR M300C
SKU: ITA001187
Manufacturer part number: ULS-M720C
Manufacturer: Infravision
THB158,000.00 incl VAT

Omnisense (by Infravision) Ulysses Micro C

High performance marine colour camera

The Ulysses Micro C is dedicated low-light camera system that is, specifically designed for easy installation on small and fast boats. Built upon the reliable Ulysses Micro platform, it incorporates an exceptionally sensitive low-light imaging sensor, enabling the streaming of high-definition video that remains sharp and clear regardless of the lighting conditions. This system is an excellent choice for boaters looking to extend their time at sea.

Key Features

  • Has around-the-clock imaging capability to enhance operational safety
  • and situational awareness.
  • Wide display interfacing options
  • Advanced MFD/mobile app touch-screen control
  • Radar Slave and other advanced network functions
  • Low power consumption
  • Rugged/weatherproof construction
  • Easy installation

Easy Integration

The Ulysses Micro series cameras are designed to integrate seamlessly into most popular MFDs. A single cable installation greatly simplifies wire routing from camera to displays. A supplied junction box provides neat cable management, power distribution, and network connectivity to your boat systems.

Designed for:

FURUNO, GARMIN, B&G, SIMRAD, LOWRANCE

Specifications

General
Sensor Type 8.5MP CMOS
Horizontal Field of View (HFOV) 35.4º x 20º (Wide) 9º x 5.2º (Tele)
LensTamron DF30Q
ResolutionFHD
Thermal Resolution N/A
Field of View Wide 30º x 17º to effective tele 2.6º x 1.5º
StabilizationYes
Focal Length N/A
Zoom12X HyperZoom / E-zoom 48X
System Specifications
Pan / Tilt Coverage Pan: Continuous 360° Tilt: 100°, -90°
Gyro Stabilization Yes
Video Output HDMI, IP video
Video Frame Rate 30Hz
Power Consumption 25W max
Power Requirements PoE
Environmental
Operating Temperature-25°C to +55°C / -13°F to 131°F
Storage Temperature-30°C to +70°C / -22°F to 158°F
EncapsulationIP66
EMI / Salt Mist / Vibration IEC60945
Wind100kn / 115mph
Range Performance
Detection (25ppm) Up to 1.1km (0.68mi) (25ppm)
Dimensions
Size220mm X 140mm (8.7” X 5.5”)
Weight≤ 2.5kg (5.5lb)


For More details, visit Infravision website here: INFRAVISION MICRO C


Omnisense (by Infravision) Ulysses Micro C

High performance marine colour camera

The Ulysses Micro C is dedicated low-light camera system that is, specifically designed for easy installation on small and fast boats. Built upon the reliable Ulysses Micro platform, it incorporates an exceptionally sensitive low-light imaging sensor, enabling the streaming of high-definition video that remains sharp and clear regardless of the lighting conditions. This system is an excellent choice for boaters looking to extend their time at sea.

Key Features

  • Has around-the-clock imaging capability to enhance operational safety
  • and situational awareness.
  • Wide display interfacing options
  • Advanced MFD/mobile app touch-screen control
  • Radar Slave and other advanced network functions
  • Low power consumption
  • Rugged/weatherproof construction
  • Easy installation

Easy Integration

The Ulysses Micro series cameras are designed to integrate seamlessly into most popular MFDs. A single cable installation greatly simplifies wire routing from camera to displays. A supplied junction box provides neat cable management, power distribution, and network connectivity to your boat systems.

Designed for:

FURUNO, GARMIN, B&G, SIMRAD, LOWRANCE

Specifications

General
Sensor Type 8.5MP CMOS
Horizontal Field of View (HFOV) 35.4º x 20º (Wide) 9º x 5.2º (Tele)
LensTamron DF30Q
ResolutionFHD
Thermal Resolution N/A
Field of View Wide 30º x 17º to effective tele 2.6º x 1.5º
StabilizationYes
Focal Length N/A
Zoom12X HyperZoom / E-zoom 48X
System Specifications
Pan / Tilt Coverage Pan: Continuous 360° Tilt: 100°, -90°
Gyro Stabilization Yes
Video Output HDMI, IP video
Video Frame Rate 30Hz
Power Consumption 25W max
Power Requirements PoE
Environmental
Operating Temperature-25°C to +55°C / -13°F to 131°F
Storage Temperature-30°C to +70°C / -22°F to 158°F
EncapsulationIP66
EMI / Salt Mist / Vibration IEC60945
Wind100kn / 115mph
Range Performance
Detection (25ppm) Up to 1.1km (0.68mi) (25ppm)
Dimensions
Size220mm X 140mm (8.7” X 5.5”)
Weight≤ 2.5kg (5.5lb)


For More details, visit Infravision website here: INFRAVISION MICRO C
