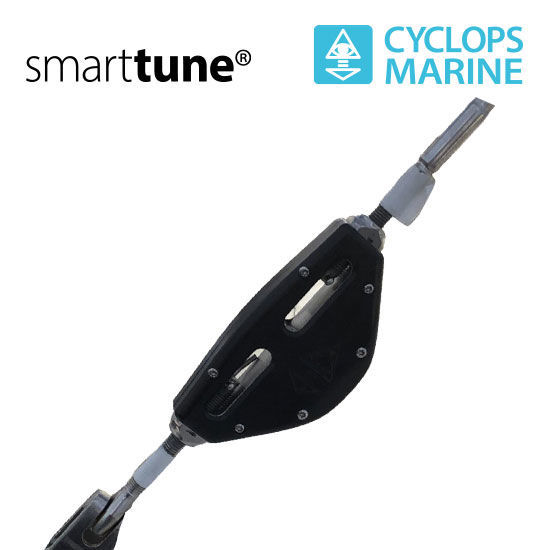

Cyclops smarttune Load Sensors
Smarttune replaces traditional turnbuckles on yacht rigging elements like forestays, backstays, shrouds, and diagonals. It delivers real-time static and dynamic load data with 1% accuracy, logging GPS-synced info for analysis via app or gateway-compatible instruments. With IP67 durability and 6-month battery life, it's suited for optimizing sail shape and upwind performance on boats of all sizes, focusing on precise tension adjustments.
smarttune2
Load Sensors for Standing Rigging
smarttune is designed to replace your existing turn screw. (forestay/backstay/shrouds/diagonals).
Live Data to your Phone or Instruments
Live, static & dynamic load data to your phone via the smartfittings app, or to your on-board instruments via our gateway.
Features:
- Easily replaces existing rigging turnscrew
- Waterproof beyond IP68
- Wireless charging
- Fully charged in 1 hour
- Adjustable data rate via smartfittings app
- Wireless connection to your phone via the smartfittings app
- Wireless connection directly to Vakaros Atlas 2 and Sailmon MAX
- Wireless connection to electronic boat displays via the Cyclops gateway
- Data log for analysis stored in smartfittings app and Cyclops gateway
- Lightweight and low windage
- Accurate to +/- 1% of maximum working load
- Designed to fit rigging with relevant working loads
Specifications:
| ASAP Code |
SKU |
Model |
Thread size |
Calibrated load |
Weight |
Dimensions |
Power |
Battery life |
On/off control |
| ITA055684 |
TS07 |
smarttune² 1/4" |
1/4" |
500kg |
180g |
55x112x18mm |
Internal LiPo |
80 days |
Yes |
| ITA055685 |
TS08 |
smarttune² 5/16" |
5/16" |
750kg |
| ITA055686 |
TS03 |
smarttune 7/16" |
7/16" |
1,900kg |
390g |
60x170x26mm |
AAA batteries |
16 months |
n/a |
| ITA055688 |
TS02 |
smarttune 1/2" |
1/2" |
2,500kg |
| ITA055689 |
TS05 |
smarttune 5/8" |
5/8" |
3,800kg |
620g |
65x230x31mm |
| ITA055690 |
TS12 |
smarttune 3/4" |
3/4" |
5,000kg |
1,500g |
70.5x275x40mm |
| ITA055691 |
TS11 |
smarttune 7/8" |
7/8" |
8,000kg |
1,530g |
70.5x320x40mm |
| ITA055692 |
TS10 |
smarttune² 1" |
1" |
12,000kg |
1,900g |
68x400x40mm |
Internal LiPo |
100 days |
Yes |
