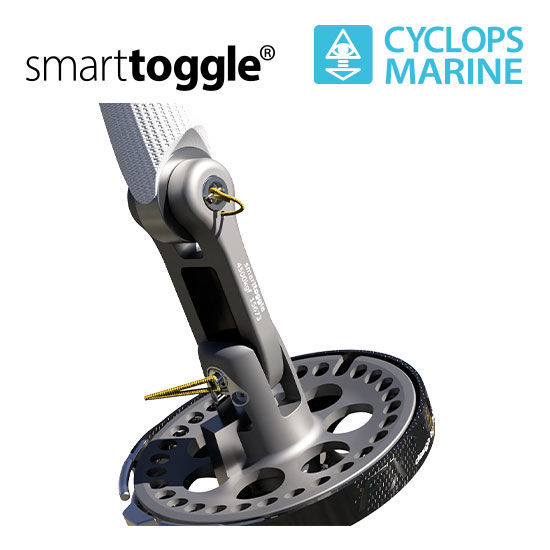

Picture of Cyclops smarttoggle Load Sensors

Cyclops smarttoggle Load Sensors

Smarttoggle is a plug-and-play load sensor for non-structural furlers on yachts, ensuring optimal furling by measuring luff loads with 1% accuracy. IP67 waterproof, it features 2,000-hour battery life and wireless data transmission to apps or onboard systems like B&G. It adjusts based on wind and angles, logging data for analysis without cables.
Manufacturer: Cyclops marine
Be the first to review this product

smarttoggle2

Cyclops’ New Furler Technology

  • Ensure Optimal Furling Performance
  • Hit and Repeat Fast Luff Loads.
  • Adjust Luff Load To Targets As Windspeed and Angles Change.
  • Log Loads For Analysis.

How it works…

Load Data is Wirelessly Transmitted to the smartphone app, or via a Cyclops Gateway to your Boat’s onboard displays.

Features:

  • Waterproof beyond IP68
  • Wireless charging
  • Fully charged in 1 hour
  • Adjustable data rate via smartfittings app
  • Wireless connection to your phone via the smartfittings app
  • Wireless connection directly to Vakaros and Sailmon wireless displays
  • Wireless connection to wired boat electronics via the Cyclops gateway
  • Data log for analysis stored in smartfittings app and Cyclops gateway
  • Lightweight and low windage
  • Accurate to +/- 1% of maximum working load
  • Designed to fit furlers with relevant working loads

Specifications:

ASAP Code SKU Model Pin diameter Working load limit1 Weight Dimensions Accuracy range Power Battery life On/off control
ITA055681 FE02 smarttoggle 4.5t 12mm
(Fits: Facnor, Profurl, Karver)		 12 4,500kg 230g 140x50x35mm +/-45kg Internal LiPo 2000 hr Yes
ITA055682 FE04 smarttoggle 4.5t 12.7mm
(Fits: KZ)		 12.7
ITA055683 FE03 smarttoggle 7t 16 7,000kg 530g 160x55x50 +/- 70

More details from Cyclops marine website here:
https://www.cyclopsmarine.com/products/smarttoggle-product-info/

smarttoggle2

Cyclops’ New Furler Technology

  • Ensure Optimal Furling Performance
  • Hit and Repeat Fast Luff Loads.
  • Adjust Luff Load To Targets As Windspeed and Angles Change.
  • Log Loads For Analysis.

How it works…

Load Data is Wirelessly Transmitted to the smartphone app, or via a Cyclops Gateway to your Boat’s onboard displays.

Features:

  • Waterproof beyond IP68
  • Wireless charging
  • Fully charged in 1 hour
  • Adjustable data rate via smartfittings app
  • Wireless connection to your phone via the smartfittings app
  • Wireless connection directly to Vakaros and Sailmon wireless displays
  • Wireless connection to wired boat electronics via the Cyclops gateway
  • Data log for analysis stored in smartfittings app and Cyclops gateway
  • Lightweight and low windage
  • Accurate to +/- 1% of maximum working load
  • Designed to fit furlers with relevant working loads

Specifications:

ASAP Code SKU Model Pin diameter Working load limit1 Weight Dimensions Accuracy range Power Battery life On/off control
ITA055681 FE02 smarttoggle 4.5t 12mm
(Fits: Facnor, Profurl, Karver)		 12 4,500kg 230g 140x50x35mm +/-45kg Internal LiPo 2000 hr Yes
ITA055682 FE04 smarttoggle 4.5t 12.7mm
(Fits: KZ)		 12.7
ITA055683 FE03 smarttoggle 7t 16 7,000kg 530g 160x55x50 +/- 70

More details from Cyclops marine website here:
https://www.cyclopsmarine.com/products/smarttoggle-product-info/

Picture of smarttoggle 4.5t 12mm
smarttoggle 4.5t 12mm
(Fits: Facnor, Profurl, Karver)
SKU: ITA055681
Manufacturer part number: FE02
฿65,000.00 incl VAT
Picture of smarttoggle 4.5t 12.7mm
smarttoggle 4.5t 12.7mm
(Fits: KZ)
SKU: ITA055682
Manufacturer part number: FE04
฿65,000.00 incl VAT
Picture of smarttoggle 7t
smarttoggle 7t
SKU: ITA055683
Manufacturer part number: FE03
฿78,500.00 incl VAT
