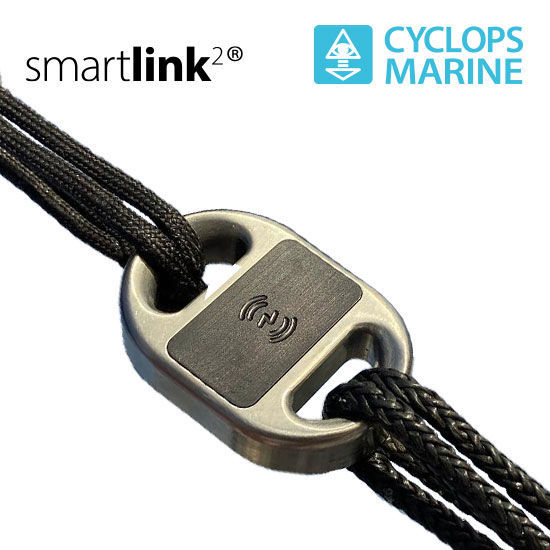

Cyclops smartlink Load Sensors
Smartlink is a compact, wireless load sensor made from Titanium or Aluminium, designed for in-line integration with soft stays or sheets like mainsheets and backstays on yachts. It provides 1% accurate live and logged load data via app or onboard instruments, with a 2,000-hour battery life and wireless charging. Ideal for enhancing safety, performance, and repeatable trim settings across various vessel sizes, from superyachts to smaller crafts.
smartlink2
Endless Potential Applications
smartlink² takes the versatile smartlink sensor to a new level of connectivity, durability and practicality. Easily added in-line of any ‘soft’ stay or sheet, from mainsheets, to code sail tack lines, to backstays and runners.
Live Data To Your Phone Or Instruments
Static & dynamic load data to your phone via the smartfittings app, or to your on-board instruments via our gateway.
Features:
- Waterproof beyond IP68
- Wireless charging
- Fully charged in 1 hour
- Adjustable data rate via smartfittings app
- Wireless connection to your phone via the smartfittings app
- Wireless connection directly to Vakaros and Sailmon wireless displays
- Wireless connection to wired boat electronics via the Cyclops gateway
- Data log for analysis stored in smartfittings app and Cyclops gateway
- Lightweight and low windage
- Accurate to +/- 1% of maximum working load
- Designed to fit strops with relevant working loads
Specifications:
| ASAP Code |
SKU |
Model |
Strop diameter |
Working load limit1 |
Weight |
Dimensions |
Power |
Battery life |
On/off control |
| ITA055670 |
SG02 |
smartlink² Atto |
12mm |
250kg |
75g |
68x79x15mm |
Internal LiPo |
1800 hr |
Yes |
| ITA055672 |
SR09 |
smartlink² nano |
4mm |
600kg |
72g |
64x55x17mm |
2000 hr |
| ITA055674 |
SR11 |
smartlink² 2t |
9mm |
2,000kg |
160g |
79x55x19mm |
| ITA055676 |
SR12 |
smartlink² 5t |
10.7mm |
5,000kg |
210g |
83x66x22mm |
| ITA055678 |
SR13 |
smartlink² 10t |
12.4mm |
10,000kg |
360g |
93x74x25mm |
| ITA055680 |
SR10 |
smartlink² 20t |
15mm |
20,000kg |
798g |
107x88x39mm |
