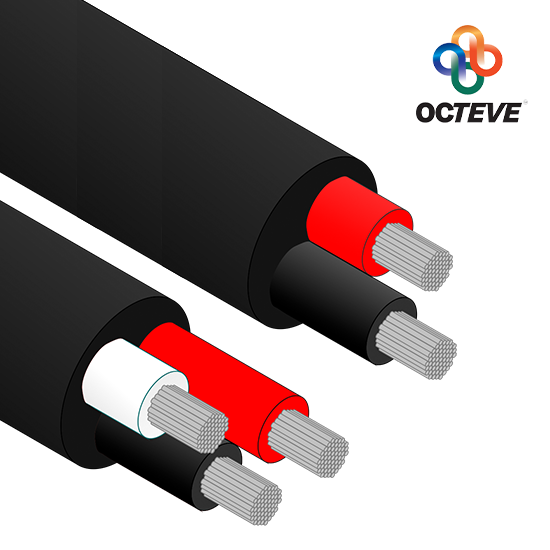

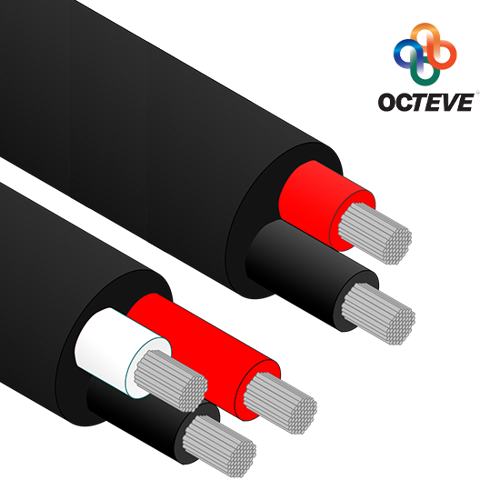

SH Multi Core Cable - DC

RI/U Power and Control - DC

0.6/1kV 110°C LSHF Flame Retardant
ROHS III & REACH compliant

Applications

Flexible Power and Control cables suitable for allshipboard and marine applications.

Design Construction

• Conductors
  Flexible stranded plain or tinned annealed copper
  to IEC 60228 and AS/NZS 1125.
• Insulation
  HFFLEX X-110 Halogen Free HEPR.
  Water resistant. Excellent dielectric strength.
• Sheath
  Flame Retardant, Sunlight and Ozone Resistant.

Standards

IEC 60228, IEC 60502-1, IEC 60092-353, IEC 60332-1, IEC 60332-3-22 CAT A, IEC 60754-1&2*, IEC 61034-1&2*, (*For L, F and M Type Only), AS/NZS 1125, AS/NZS 5000.1, IEEE 45, IEEE 1580, IEEE 1202

Specifications

• Operating Temp: -40ºC to +110ºC
• Voltage Rating: 600/1000 V AC / 900/1500 V DC

Standards:

IEC 60228, IEC 60092-350, IEC 60092-353, IEC 60332-1, IEC 60332-3-22 Cat A, IEC 60754-1&2, IEC 61034-1&2, IEEE 45, IEEE 1580, IEEE 1202, AS/NZS 1125, AS/NZS 1660.5.1, AS/NZS 1660.5.2, AS/NZS 1660.5.3, AS/NZS 1660.5.6

Discount options available for Roll Quantities, Contact us for special orders

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.
