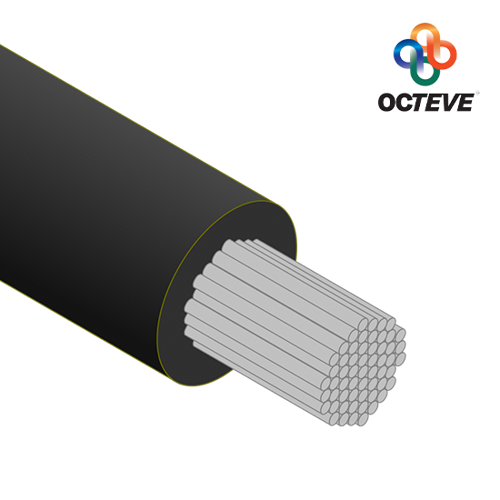

UP Single Core cable - 70.0 sqmm

There is currently a severe shortage of Tricab cable in Thailand due to the factory closing.
We have some stock, but please check with us before ordering first.

Construction

• TriCab Series:
  UP Switchboard/Panel Wire

• Conductor:
  Finely Stranded Tinned Copper strands to IEC 60228 & AS/NZS 1125 standard.
• Insulation:
  "Easy Strip"LSZH/XLPO HF-90 to IEC 60092-360 standard

Specifications

• Operating Temp: -40ºC to +110ºC
• Voltage Rating: 600/1000 V
• Minimum Bending Radius: 33mm
• Nominal Conductor Diameter: 10.6mm
• Nominal Overall Diameter: 13.1mm
• Current Rating: 242A
  to IEC 60092-352:2005 Table B.4 - Current carrying capacaties in continuous service, 90ºC opperating temperature, 45ºC ambient temperature.
• Approx Weight: 644kg/km

Discount options available for Roll Quantities, Contact us for special orders

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.
