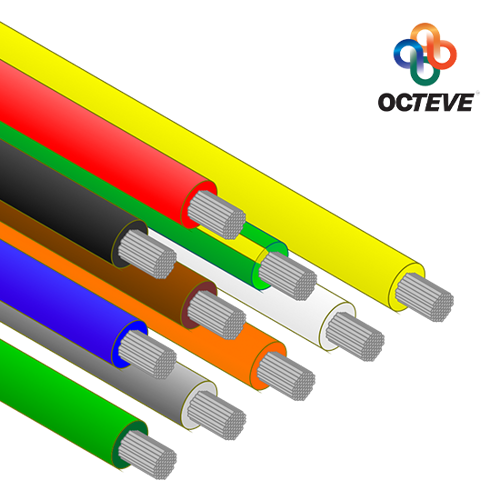

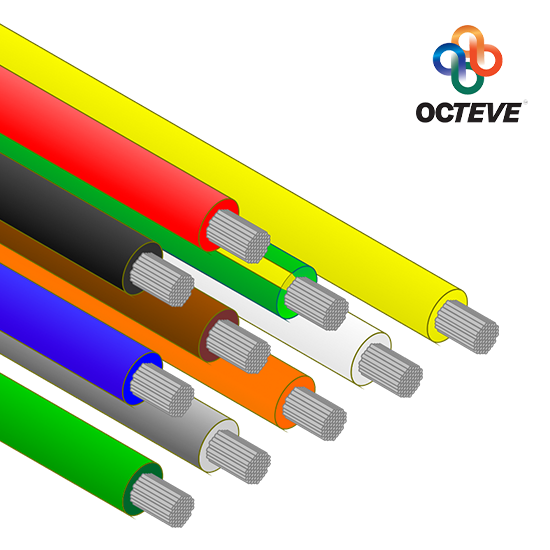

EA Single Core cable - 4.0 sqmm

Flexible Tinned Coper 4sqmm Single Insulated Power Cables suitable for Shipboard and Marine applications.
ผู้ผลิต: Octeve

UX Marine & Offshore Switchboard/Panel wire

0.6/1kV 110°C LSHF Flame Retardant
ROHS III & REACH compliant

Applications

Flexible Single Insulated Power cables suitable for marine and offshore applications.

Design Construction

  • Conductors
    Flexible stranded plain or tinned annealed copper
    to IEC 60228 and AS/NZS 1125.
  • Insulation
    HFFLEX HF-90 Halogen Free Crosslinked
    Polyolefin (XLPO), Flame Retardant, Sunlight &
    Ozone resistant. Excellent resistance to abrasion.

Standards

IEC 60228, IEC 60502-1, IEC 60992-353, IEC 60332-1, IEC 60332-3-22 CAT A, IEC 60754-1&2, IEC 61034-1&2, AS/NZS 1125, AS/NZS 5000.1, IEEE 45, IEEE 1580, IEEE 1202

Specifications

  • Operating Temp: -40ºC to +110ºC
  • Voltage Rating: 600/1000 V / 900/1500V DC
  • Minimum Bending Radius: 10mm
  • Nominal Conductor Diameter: 2.5mm
  • Nominal Overall Diameter: 4mm
  • Current Rating: 40A
    to IEC 60092-352:2005 Table B.4 - Current carrying capacaties in continuous service, 90ºC opperating temperature, 45ºC ambient temperature.
  • Approx Weight: 42kg/km

Discount options available for Roll Quantities, Contact us for special orders

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

UX Marine & Offshore Switchboard/Panel wire

0.6/1kV 110°C LSHF Flame Retardant
ROHS III & REACH compliant

Applications

Flexible Single Insulated Power cables suitable for marine and offshore applications.

Design Construction

  • Conductors
    Flexible stranded plain or tinned annealed copper
    to IEC 60228 and AS/NZS 1125.
  • Insulation
    HFFLEX HF-90 Halogen Free Crosslinked
    Polyolefin (XLPO), Flame Retardant, Sunlight &
    Ozone resistant. Excellent resistance to abrasion.

Standards

IEC 60228, IEC 60502-1, IEC 60992-353, IEC 60332-1, IEC 60332-3-22 CAT A, IEC 60754-1&2, IEC 61034-1&2, AS/NZS 1125, AS/NZS 5000.1, IEEE 45, IEEE 1580, IEEE 1202

Specifications

  • Operating Temp: -40ºC to +110ºC
  • Voltage Rating: 600/1000 V / 900/1500V DC
  • Minimum Bending Radius: 10mm
  • Nominal Conductor Diameter: 2.5mm
  • Nominal Overall Diameter: 4mm
  • Current Rating: 40A
    to IEC 60092-352:2005 Table B.4 - Current carrying capacaties in continuous service, 90ºC opperating temperature, 45ºC ambient temperature.
  • Approx Weight: 42kg/km

Discount options available for Roll Quantities, Contact us for special orders

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

รูปภาพของ 4mm2, 1-Core, Black, Tinned Marine Wire /m
4mm2, 1-Core, Black, Tinned Marine Wire /m
SKU: ITA021566
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C4BK
สอบถามราคา
รูปภาพของ 4mm2, 1-Core, Blue, Tinned Marine Wire /m
4mm2, 1-Core, Blue, Tinned Marine Wire /m
SKU: ITA021568
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C4BL
สอบถามราคา
รูปภาพของ 4mm2, 1-Core, Brown, Tinned Marine Wire /m
4mm2, 1-Core, Brown, Tinned Marine Wire /m
SKU: ITA021569
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C4BR
สอบถามราคา
รูปภาพของ 4mm2, 1-Core, Earth, Tinned Marine Wire /m
4mm2, 1-Core, Earth, Tinned Marine Wire /m
SKU: ITA021571
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C4EA
สอบถามราคา
รูปภาพของ 4mm2, 1-Core, Green, Tinned Marine Wire /m
4mm2, 1-Core, Green, Tinned Marine Wire /m
SKU: ITA021570
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C4GN
สอบถามราคา
รูปภาพของ 4mm2, 1-Core, Grey, Tinned Marine Wire /m
4mm2, 1-Core, Grey, Tinned Marine Wire /m
SKU: ITA021574
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C4GY
สอบถามราคา
รูปภาพของ 4mm2, 1-Core, Orange, Tinned Marine Wire /m
4mm2, 1-Core, Orange, Tinned Marine Wire /m
SKU: ITA021572
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C4OR
สอบถามราคา
รูปภาพของ 4mm2, 1-Core, Red, Tinned Marine Wire /m
4mm2, 1-Core, Red, Tinned Marine Wire /m
SKU: ITA021567
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C4RE
สอบถามราคา
รูปภาพของ 4mm2, 1-Core, White, Tinned Marine Wire /m
4mm2, 1-Core, White, Tinned Marine Wire /m
SKU: ITA021573
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C4WH
สอบถามราคา
