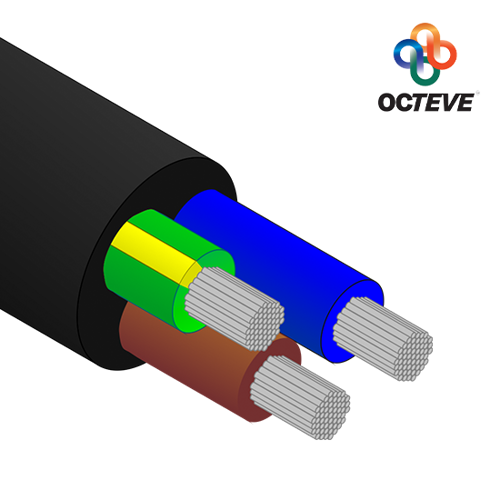

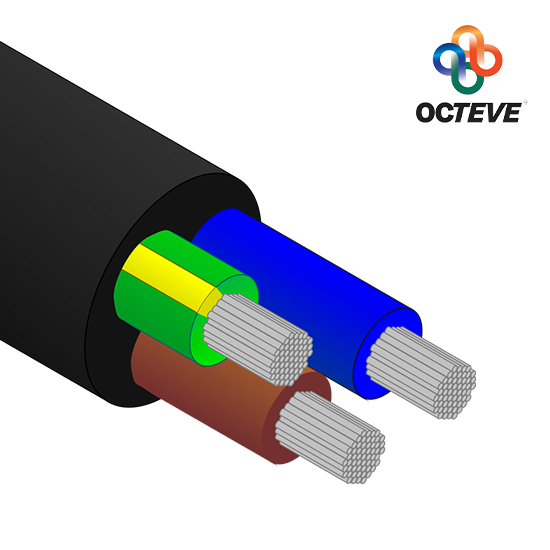

SH Multi Core Cable - AC

Flexible Tinned Coper Multi Core Insulated Power Cables suitable for Shipboard and Marine AC applications.
ผู้ผลิต: Octeve

RI/U Power and Control - AC

0.6/1kV 110°C LSHF Flame Retardant
ROHS III & REACH compliant

Applications

Flexible Power and Control cables suitable for allshipboard and marine applications.

Design Construction

  • Conductors
    Flexible stranded plain or tinned annealed copper
    to IEC 60228 and AS/NZS 1125.
  • Insulation
    HFFLEX X-110 Halogen Free HEPR.
    Water resistant. Excellent dielectric strength.
  • Sheath
    Flame Retardant, Sunlight and Ozone Resistant.

Standards

IEC 60228, IEC 60502-1, IEC 60092-353, IEC 60332-1, IEC 60332-3-22 CAT A, IEC 60754-1&2*, IEC 61034-1&2*, (*For L, F and M Type Only), AS/NZS 1125, AS/NZS 5000.1, IEEE 45, IEEE 1580, IEEE 1202

Specifications

  • Operating Temp: -40ºC to +110ºC
  • Voltage Rating: 600/1000 V AC / 900/1500 V DC

Standards:

IEC 60228, IEC 60092-350, IEC 60092-353, IEC 60332-1, IEC 60332-3-22 Cat A, IEC 60754-1&2, IEC 61034-1&2, IEEE 45, IEEE 1580, IEEE 1202, AS/NZS 1125, AS/NZS 1660.5.1, AS/NZS 1660.5.2, AS/NZS 1660.5.3, AS/NZS 1660.5.6

Discount options available for Roll Quantities, Contact us for special orders

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

RI/U Power and Control - AC

0.6/1kV 110°C LSHF Flame Retardant
ROHS III & REACH compliant

Applications

Flexible Power and Control cables suitable for allshipboard and marine applications.

Design Construction

  • Conductors
    Flexible stranded plain or tinned annealed copper
    to IEC 60228 and AS/NZS 1125.
  • Insulation
    HFFLEX X-110 Halogen Free HEPR.
    Water resistant. Excellent dielectric strength.
  • Sheath
    Flame Retardant, Sunlight and Ozone Resistant.

Standards

IEC 60228, IEC 60502-1, IEC 60092-353, IEC 60332-1, IEC 60332-3-22 CAT A, IEC 60754-1&2*, IEC 61034-1&2*, (*For L, F and M Type Only), AS/NZS 1125, AS/NZS 5000.1, IEEE 45, IEEE 1580, IEEE 1202

Specifications

  • Operating Temp: -40ºC to +110ºC
  • Voltage Rating: 600/1000 V AC / 900/1500 V DC

Standards:

IEC 60228, IEC 60092-350, IEC 60092-353, IEC 60332-1, IEC 60332-3-22 Cat A, IEC 60754-1&2, IEC 61034-1&2, IEEE 45, IEEE 1580, IEEE 1202, AS/NZS 1125, AS/NZS 1660.5.1, AS/NZS 1660.5.2, AS/NZS 1660.5.3, AS/NZS 1660.5.6

Discount options available for Roll Quantities, Contact us for special orders

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

รูปภาพของ 1.5mm2, 3-Core (BR-BL-EA), Black, Tinned Marine Wire /m
1.5mm2, 3-Core (BR-BL-EA), Black, Tinned Marine Wire /m
SKU: ITA021606
หมายเลขชิ้นส่วนผู้ผลิต: BVA-PDXD/3C1.5BK
สอบถามราคา
รูปภาพของ 2.5mm2, 3-Core (BR-BL-EA), Black, Tinned Marine Wire /m
2.5mm2, 3-Core (BR-BL-EA), Black, Tinned Marine Wire /m
SKU: ITA021608
หมายเลขชิ้นส่วนผู้ผลิต: BVA-PDXD/3C2.5BK
สอบถามราคา
รูปภาพของ 4mm2, 3-Core (BR-BL-EA), Black, Tinned Marine Wire /m
4mm2, 3-Core (BR-BL-EA), Black, Tinned Marine Wire /m
SKU: ITA021611
หมายเลขชิ้นส่วนผู้ผลิต: BVA-PDXD/3C4BK
สอบถามราคา
รูปภาพของ 6mm2, 3-Core (BR-BL-EA), Black, Tinned Marine Wire /m
6mm2, 3-Core (BR-BL-EA), Black, Tinned Marine Wire /m
SKU: ITA021613
หมายเลขชิ้นส่วนผู้ผลิต: BVA-PDXD/3C6BK
สอบถามราคา
รูปภาพของ 10mm2, 3-Core (BR-BL-EA), Black, Tinned Marine Wire /m
10mm2, 3-Core (BR-BL-EA), Black, Tinned Marine Wire /m
SKU: ITA025078
หมายเลขชิ้นส่วนผู้ผลิต: BVA-PDXD/3C10BK
สอบถามราคา
