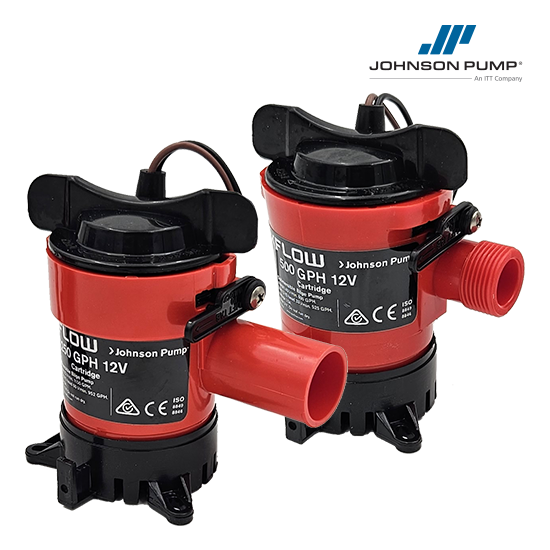

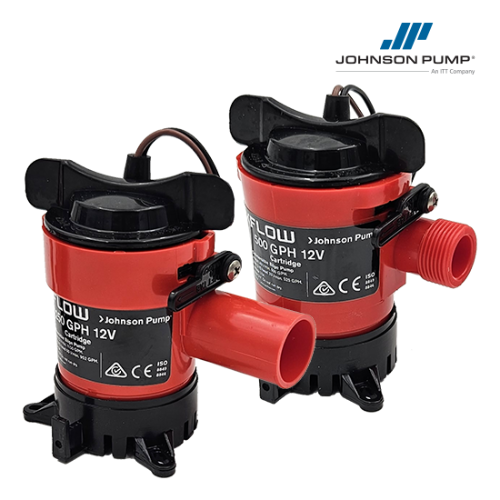

SPX Submersible Cartride Bilge Pumps

Bilge pump cleaning and maintenance no longer call for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
Manufacturer: SPX Johnson

The cartridge bilge pumps can be removed for cleaning or replacement without the use of a single tool. Lift the tab on the top, give the cartridge a twist and pull it out; that’s all there is to it. The cartridge contains an all-in-one motor/impeller unit with no loose parts.

Our Cartridge Pumps incorporate some of the most advanced features in the industry, features developed from service in a wide variety of uses including racing, cruising, sport fishing, and demanding commercial duties. The 500 GPH, 750 GPH, and 1000 GPH pumps come with easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered with both straight and a 90° smooth elbow Dura-Ports, as well as a removable check valve.

Specifications:

SPX Part No. Description Capacity 3 ft (0.9m) head Capacity straight  Amp Fuse Size Connection
32-1450-01 Cartridge Bilge Pump 500 GPH 12V 33 l/min - 525 GPH 40 l/min - 630 GPH 2.5 A 5 A ¾" (19mm)
32-1550-01 Cartridge Bilge Pump 750 GPH 12V 44 l/min - 700 GPH 50 l/min - 800 GPH 3 A 5 A ¾"  (19mm)
32-1650-01 Cartridge Bilge Pump 1000 GPH 12V 50 l/min - 800 GPH 63 l/min - 1000 GPH 3.2 A 5 A ¾"  (19mm)
32-1650-01-24 Cartridge Bilge Pump 1000 GPH 24V 50 l/min - 800 GPH 63 l/min - 1000 GPH 2 A 3 A ¾"  (19mm)
32-1750-01 Cartridge Bilge Pump 1250 GPH 12V* 60 l/min - 952 GPH 73 l/min - 1150 GPH 3 A 5 A 1⅛"  (28mm)
32-1750-01-24 Cartridge Bilge Pump 1250 GPH 24V* 60 l/min - 952 GPH 73 l/min - 1150 GPH 2 A 3 A 1⅛" (28mm)

* Does not include Dura-Port connection

The cartridge bilge pumps can be removed for cleaning or replacement without the use of a single tool. Lift the tab on the top, give the cartridge a twist and pull it out; that’s all there is to it. The cartridge contains an all-in-one motor/impeller unit with no loose parts.

Our Cartridge Pumps incorporate some of the most advanced features in the industry, features developed from service in a wide variety of uses including racing, cruising, sport fishing, and demanding commercial duties. The 500 GPH, 750 GPH, and 1000 GPH pumps come with easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered with both straight and a 90° smooth elbow Dura-Ports, as well as a removable check valve.

Specifications:

SPX Part No. Description Capacity 3 ft (0.9m) head Capacity straight  Amp Fuse Size Connection
32-1450-01 Cartridge Bilge Pump 500 GPH 12V 33 l/min - 525 GPH 40 l/min - 630 GPH 2.5 A 5 A ¾" (19mm)
32-1550-01 Cartridge Bilge Pump 750 GPH 12V 44 l/min - 700 GPH 50 l/min - 800 GPH 3 A 5 A ¾"  (19mm)
32-1650-01 Cartridge Bilge Pump 1000 GPH 12V 50 l/min - 800 GPH 63 l/min - 1000 GPH 3.2 A 5 A ¾"  (19mm)
32-1650-01-24 Cartridge Bilge Pump 1000 GPH 24V 50 l/min - 800 GPH 63 l/min - 1000 GPH 2 A 3 A ¾"  (19mm)
32-1750-01 Cartridge Bilge Pump 1250 GPH 12V* 60 l/min - 952 GPH 73 l/min - 1150 GPH 3 A 5 A 1⅛"  (28mm)
32-1750-01-24 Cartridge Bilge Pump 1250 GPH 24V* 60 l/min - 952 GPH 73 l/min - 1150 GPH 2 A 3 A 1⅛" (28mm)

* Does not include Dura-Port connection

Picture of Cartridge Bilge Pump 500 GPH 12V
Cartridge Bilge Pump 500 GPH 12V
SKU: ITA016156
Manufacturer part number: 32-1450-01
฿1,244.00 incl VAT
Picture of Cartridge Bilge Pump 750 GPH 12V
Cartridge Bilge Pump 750 GPH 12V
SKU: ITA016155
Manufacturer part number: 32-1550-01
฿1,774.00 incl VAT
Picture of Cartridge Bilge Pump 1000 GPH 12V
Cartridge Bilge Pump 1000 GPH 12V
SKU: ITA016148
Manufacturer part number: 32-1650-01
฿2,303.00 incl VAT
Picture of Cartridge Bilge Pump 1000 GPH 24V
Cartridge Bilge Pump 1000 GPH 24V
SKU: ITA016144
Manufacturer part number: 32-1650-01-24
฿2,429.00 incl VAT
Picture of Cartridge Bilge Pump 1250 GPH 12V*
Cartridge Bilge Pump 1250 GPH 12V*
SKU: ITA016145
Manufacturer part number: 32-1750-01
฿2,620.00 incl VAT
Picture of Cartridge Bilge Pump 1250 GPH 24V*
Cartridge Bilge Pump 1250 GPH 24V*
SKU: ITA016142
Manufacturer part number: 32-1750-01-24
฿2,747.00 incl VAT
