BEP Contour Battery Swiches

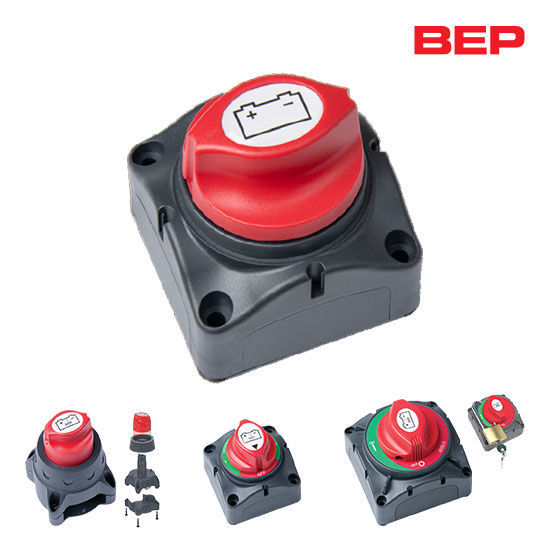

701 Contour Battery Master Switch (ITA000005)

• Patented Contour Locking System allows switch to be a stand alone unit, or locked together with other switches
• Control knob can be removed by switching to counter-clockwise 45° position
• Three removable side plates for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits.
  This ensures the switch meets ABYC requirements
• 2.1" (52 mm) hole for mounting
• Available with house knob (OEM # 701B-HB) or with chassis knob (OEM # 701B-CH)

701S Battery Selector Switch (ITA000011)
The 701S is the most compact selector switch available on the market.

• Housed in the same dimensions as the 701, and includes the same removable side plates and back cover ensuring that it meets ABYC requirements.
• While BEP recommends isolated battery systems as outlined with our distribution clusters, the 701S offers a simple economical way of separating two batteries
• Please note selector switches will not separate electronics from harmful engine starting spikes.

700 Easyfit Battery Switch (ITA000016)
Created primarily for installations where switches need to be recessed through varying thicknesses of panels.

• Easily removable threaded ring allows for panel thicknesses up to 3/4" (19 mm)
• Same features as the 701 with the removable knob 45° past the off position
• Includes removable back cover ensuring that it meets ABYC requirements
• Surface mount option offers a unique style compared to other switches available on the market
• Can easily be retro-fitted in place of most European post and lever type switches

720 Heavy-Duty Battery Switch (ITA000019)
The 720 is well suited to larger vessels, being capable of handling the high electrical loads found on today’s boats and RV’s plus starting large diesel engines.

• Rated at 600A continuous and 2500A cranking
• Can be rear panel, or surface mounted
• Uses the same proven style of self cleaning sliding copper contact used inside the 701

721 Heavy-Duty Battery Selector Switch (ITA000023)
The 721 is our heavy-duty selector switch. Housed in the same module as the 720, it includes the same removable plates and back cover.
Please note selector switches will not separate electronics from harmful engine starting spikes.
This model is no longer available, please consider the Pro-Installer series of switches

Specifications:
