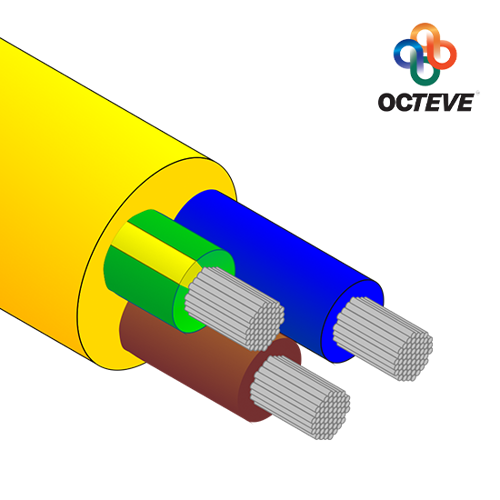

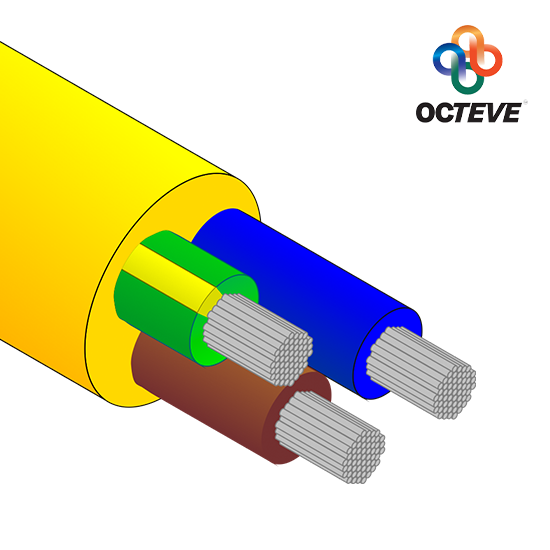

ES Shore Power Cable

EZ Flexible Tinned Coper Multi Core Insulated Power in bright Yellow jacket for Shore Power AC applications.
ผู้ผลิต: Octeve

Marine Shorepower Flexible Cable

0.6/1kV 110°C N-RUBBER Flame Retardant
ROHS III & REACH compliant

Applications

Heavy-Duty Flexible Rubber Shorepower cablessuitable for all shipboard and marine applications.

Design Construction

  • Conductors
    Flexible stranded plain or tinned annealed copper
    to IEC 60228 and AS/NZS 1125.
  • Insulation
    HFFLEX X-110 Halogen Free Crosslinked Rubber
  • Sheath
    Type ST 2 to IEC 60092-360 & IEC 60502-1
    Thermoplastic Lead-free N-RUBBER V-105 PVC.
    Flame Retardant, Water, Oil, Sunlight and Ozone
    Resistant. Submersible to 1000 meters

Standards

IEC 60228, IEC 60502-1, IEC 60332-1m AS/NZS 1125, AS/NZS 5000.1, AS/NZS 1660.5.6, AS/NZS 3808, AS/NZS 3008.1, AS/NZS 3000

Specifications

  • Operating Temp: -40ºC to +110ºC
  • Voltage Rating: 600/1000 V / 900/1500V DC

Discount options available for Roll Quantities, Contact us for special orders

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

Marine Shorepower Flexible Cable

0.6/1kV 110°C N-RUBBER Flame Retardant
ROHS III & REACH compliant

Applications

Heavy-Duty Flexible Rubber Shorepower cablessuitable for all shipboard and marine applications.

Design Construction

  • Conductors
    Flexible stranded plain or tinned annealed copper
    to IEC 60228 and AS/NZS 1125.
  • Insulation
    HFFLEX X-110 Halogen Free Crosslinked Rubber
  • Sheath
    Type ST 2 to IEC 60092-360 & IEC 60502-1
    Thermoplastic Lead-free N-RUBBER V-105 PVC.
    Flame Retardant, Water, Oil, Sunlight and Ozone
    Resistant. Submersible to 1000 meters

Standards

IEC 60228, IEC 60502-1, IEC 60332-1m AS/NZS 1125, AS/NZS 5000.1, AS/NZS 1660.5.6, AS/NZS 3808, AS/NZS 3008.1, AS/NZS 3000

Specifications

  • Operating Temp: -40ºC to +110ºC
  • Voltage Rating: 600/1000 V / 900/1500V DC

Discount options available for Roll Quantities, Contact us for special orders

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

รูปภาพของ 2.5mm2, 3-Core (BR-BL-EA), Yellow, Tinned Marine Wire, EasyFlex (Shore Power) /m
2.5mm2, 3-Core (BR-BL-EA), Yellow, Tinned Marine Wire, EasyFlex (Shore Power) /m
SKU: ITA031978
หมายเลขชิ้นส่วนผู้ผลิต: EZ-PDXD/3C2.5YE
สอบถามราคา
รูปภาพของ 4mm2, 3-Core (BR-BL-EA), Yellow, Tinned Marine Wire, EasyFlex (Shore Power) /m
4mm2, 3-Core (BR-BL-EA), Yellow, Tinned Marine Wire, EasyFlex (Shore Power) /m
SKU: ITA030390
หมายเลขชิ้นส่วนผู้ผลิต: EZ-PDXD/3C4YE
สอบถามราคา
รูปภาพของ 6mm2, 3-Core (BR-BL-EA), Yellow, Tinned Marine Wire, EasyFlex (Shore Power) /m
6mm2, 3-Core (BR-BL-EA), Yellow, Tinned Marine Wire, EasyFlex (Shore Power) /m
SKU: ITA032602
หมายเลขชิ้นส่วนผู้ผลิต: EZ-PDXD/3C6YE
สอบถามราคา
รูปภาพของ 10mm2, 3-Core (BR-BL-EA), Yellow, Tinned Marine Wire, EasyFlex (Shore Power) /m
10mm2, 3-Core (BR-BL-EA), Yellow, Tinned Marine Wire, EasyFlex (Shore Power) /m
SKU: ITA039233
หมายเลขชิ้นส่วนผู้ผลิต: EZ-PDXD/3C10YE
สอบถามราคา
