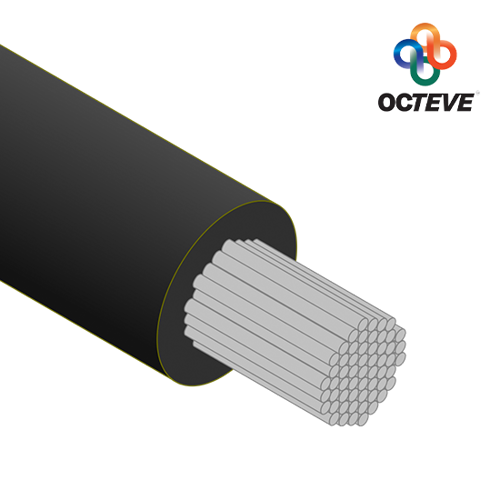

EA Single Core cable - 95.0 sqmm

Flexible Tinned Coper 95sqmm Single Insulated Power Cables suitable for Shipboard and Marine applications.
ผู้ผลิต: Octeve

UX Marine & Offshore Switchboard/Panel wire

0.6/1kV 110°C LSHF Flame Retardant
ROHS III & REACH compliant

Applications

Flexible Single Insulated Power cables suitable for marine and offshore applications.

Design Construction

  • Conductors
    Flexible stranded plain or tinned annealed copper
    to IEC 60228 and AS/NZS 1125.
  • Insulation
    HFFLEX HF-90 Halogen Free Crosslinked
    Polyolefin (XLPO), Flame Retardant, Sunlight &
    Ozone resistant. Excellent resistance to abrasion.

Standards

IEC 60228, IEC 60502-1, IEC 60992-353, IEC 60332-1, IEC 60332-3-22 CAT A, IEC 60754-1&2, IEC 61034-1&2, AS/NZS 1125, AS/NZS 5000.1, IEEE 45, IEEE 1580, IEEE 1202

Specifications

  • Operating Temp: -40ºC to +110ºC
  • Voltage Rating: 600/1000 V / 900/1500V DC
  • Minimum Bending Radius: 37mm
  • Nominal Conductor Diameter: 12.3mm
  • Nominal Overall Diameter: 14.8mm
  • Current Rating: 293A
    to IEC 60092-352:2005 Table B.4 - Current carrying capacaties in continuous service, 90ºC opperating temperature, 45ºC ambient temperature.
  • Approx Weight: 803kg/km

20% discount for 50m Roll lengths

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

UX Marine & Offshore Switchboard/Panel wire

0.6/1kV 110°C LSHF Flame Retardant
ROHS III & REACH compliant

Applications

Flexible Single Insulated Power cables suitable for marine and offshore applications.

Design Construction

  • Conductors
    Flexible stranded plain or tinned annealed copper
    to IEC 60228 and AS/NZS 1125.
  • Insulation
    HFFLEX HF-90 Halogen Free Crosslinked
    Polyolefin (XLPO), Flame Retardant, Sunlight &
    Ozone resistant. Excellent resistance to abrasion.

Standards

IEC 60228, IEC 60502-1, IEC 60992-353, IEC 60332-1, IEC 60332-3-22 CAT A, IEC 60754-1&2, IEC 61034-1&2, AS/NZS 1125, AS/NZS 5000.1, IEEE 45, IEEE 1580, IEEE 1202

Specifications

  • Operating Temp: -40ºC to +110ºC
  • Voltage Rating: 600/1000 V / 900/1500V DC
  • Minimum Bending Radius: 37mm
  • Nominal Conductor Diameter: 12.3mm
  • Nominal Overall Diameter: 14.8mm
  • Current Rating: 293A
    to IEC 60092-352:2005 Table B.4 - Current carrying capacaties in continuous service, 90ºC opperating temperature, 45ºC ambient temperature.
  • Approx Weight: 803kg/km

20% discount for 50m Roll lengths

TriCab and ASAP Marine is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

รูปภาพของ 95mm2, 1-Core, Black, Tinned Marine Wire /m
95mm2, 1-Core, Black, Tinned Marine Wire /m
SKU: ITA021602
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C95BK
สอบถามราคา
รูปภาพของ 95mm2, 1-Core, Green, Tinned Marine Wire /m
95mm2, 1-Core, Green, Tinned Marine Wire /m
SKU: ITA021604
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C95GN
สอบถามราคา
รูปภาพของ 95mm2, 1-Core, Red, Tinned Marine Wire /m
95mm2, 1-Core, Red, Tinned Marine Wire /m
SKU: ITA021603
หมายเลขชิ้นส่วนผู้ผลิต: UP-XXXD/1C95RE
สอบถามราคา
